Complex geometries, intricate details, vivid full-colour combinations, transparencies, and flexible parts, printed all in one model.

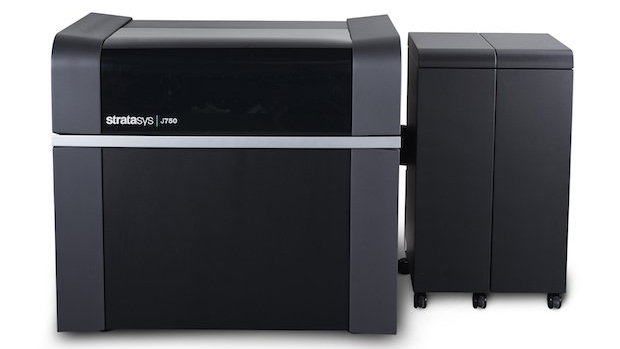

Stratasys J750
Polyjet printing (or material jetting) uses a similar process to that of inkjet (2D) printing. As 2D printers use CYMK cartridges, our Stratasys J750 3D printer hold Cyan, Yellow, Magenta, Black, White, Clear, Agilus30, and soluble support material cartridges, and many variations able to be printed at once.

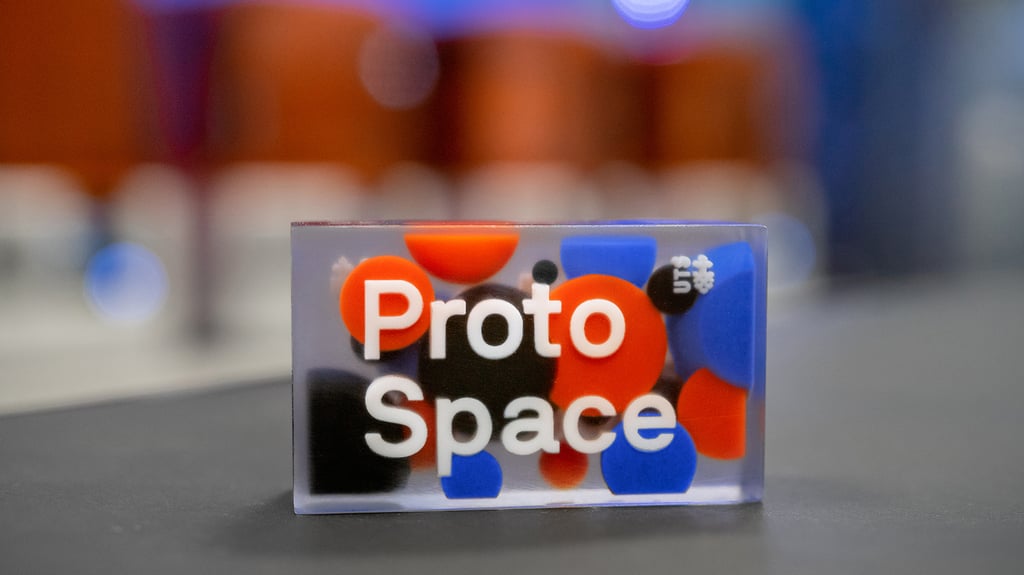

This allows for realistic colour replication, complete assemblies, and even transparency within one model. The team have had great success using this machine to produce clear lenses, flexible components for robotics and have even produced a few creepy replications of body parts.
For best print results, refer to the Polyjet design guide, contact the team about 3D printing with THE Stratasys J750.
| STRATASYS J750 POLYJET | MATERIAL | DESCRIPTION | COLOUR |
 |
VeroVivid | Rigid, high resolution | Cyan, Magenta, Yellow, Black, White |
| VeroClear | Rigid, transparent | Clear (requires post processing for greater effect) | |
| Agilus30 Clear | Flexible, rubber-like | Translucent; mix with VeroVivid for a wide colour spectrum!! |
|
HOW IT WORKS |
A series of print heads deposits a fine layers of viscous, liquid resin onto the print bed according to the setup in one pass, followed by a pass of UV lamps, which cures and solidifies the layer of material. Printed parts are then taken to a wash to dissolve printed soluble support material, rinsed, and dried. |
|
LEAD TIME |
≈ 5 days after payment confirmation |
|
MATERIAL TYPE |
Photopolymeric resin |
|
SUPPORT MATERIAL |
Soluble |
|
MAX PART SIZE* |
490 x 390 x 200 mm |
|
LAYER HEIGHT |
≈ 0.02 mm |
